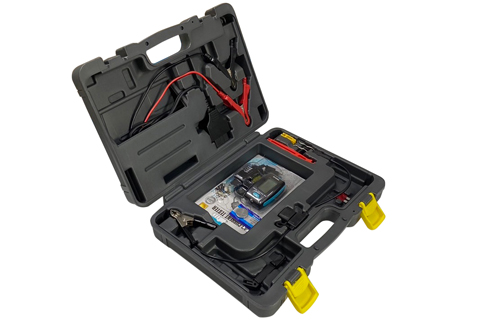

Current detector

Model ：VAT-320

The Current Leakage Detector can help user to find out the leakage of circuit of electrical equipment accurately, and this can help you to save more time when check the electric leakage.

Home  >  Tools  > Current detector

Catch leakage｜Quick detection｜Leakage elimination

Current detector

Fast and efficient
Check car leakage quickly, accurately and efficiently, with a measurable current range of 0.01A~19.99A and high accuracy. There is no need to break the circuit to measure the current, and to measure the current without interruption, and there is no need to worry about the computer records disappearing. Adopt external plug-in fuse, easy to replace. The measurement clip uses a safety alligator clip to prevent short circuit from burning the computer. After connecting to the external power supply, you can observe the leakage in the car. The ammeter comes with an adapter, so you don’t have to worry about inconsistent specifications. The ammeter supports a maximum voltage of 32V and is suitable for both large and small vehicles.
Quickly determine whether there is a leakage
VAT-320 leakage detector can quickly determine whether the vehicle is leaking. After installing the current clamp on the pile head, loosen the negative electrode of the battery. After the vehicle goes into standby mode, you can see whether there is leakage current from the ammeter (the standby current about 30 ~ 60mA, if it exceeds the value too much, leakage will occur). Next, you only need to determine the faulty line to check and repair the leakage problem.
Quickly determine leakage lines
The VAT-320 leakage detector can quickly determine the leakage circuit through the OBD2 current clamp. After the car enters standby mode, unplug the fuses in the fuse box in sequence. When the ammeter value drops, the circuit is a leakage circuit line(the anti-theft device line needs to be excluded) , and then detect the electrical components passing through the line one by one to eliminate the cause of leakage.
