Motorcycle Battery Analyzer

Model ：VAT-586B

1. Applicable to 12V batteries
2. fit Lead-acid battery
3. Alternator test
4. Cranking test

Home  >  Instruments  >  Motorcycle Battery Analyzer

Battery tester｜Motorcycle battery｜Quick measurement

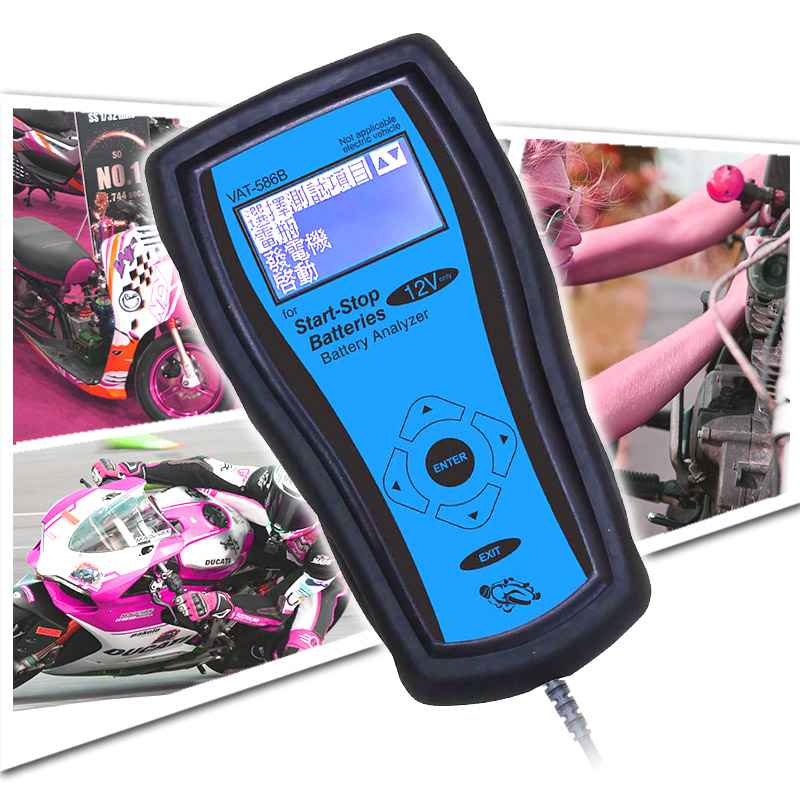

Motorcycle Battery Analyzer

Applicable to all motorcycle batteries
Battery replacement is one of the common services of motorcycle shops. If the battery is not good, it should be replaced!! But how to convince your customers!?

The new motorcycle version of the battery tester is suitable for commercially available 12V lead-acid batteries, and has 15 common specifications built-in, eliminating the need to find factory standard values, and testing on demand, accurate and fast, and the battery is good or bad at a glance.

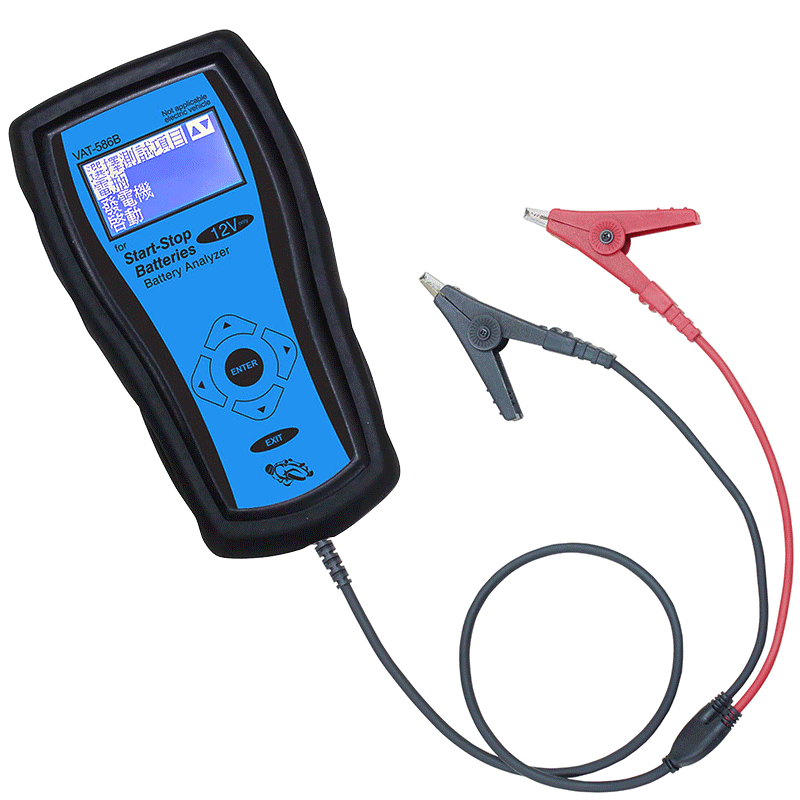

VAT-586b battery tester
Built-in 15 common specifications
There are hundreds of models of motorcycle batteries, and the common ones in motorcycle shops are always the same. Therefore, common specifications are listed, which is convenient for users to quickly select measurements, save the time to find factory standard values, and increase the image of professional maintenance.

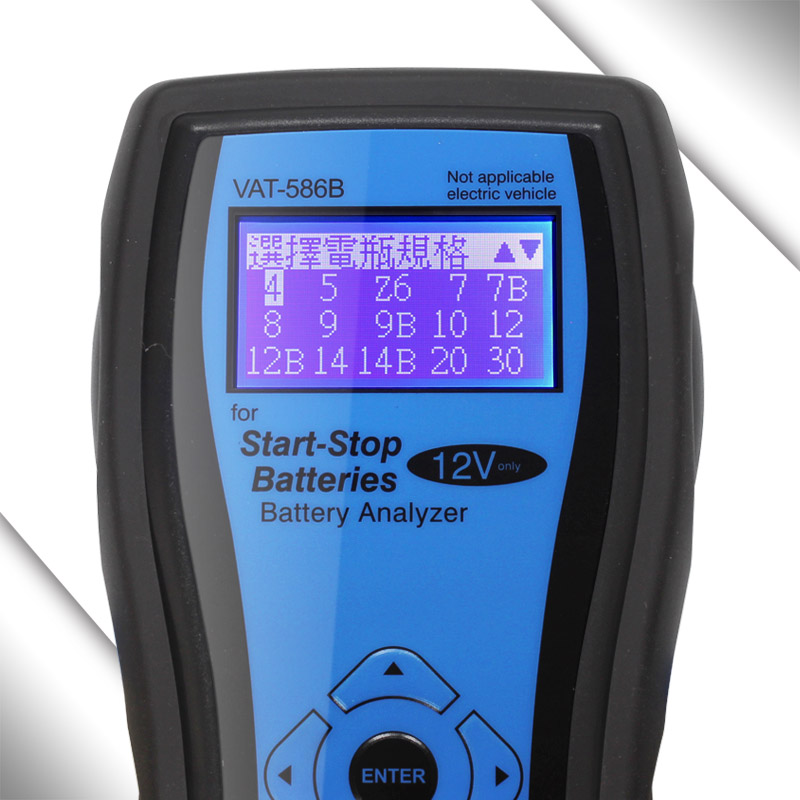

VAT-586b building in 15 specifications
Practical perfect score for multiple purposes
Generator：
It can judge the operation of the generator according to the charging voltage. Stable power recharging is the key to battery longevity, and generators are a detection link that cannot be ignored. Charging too high or too low will greatly reduce the battery life.

Starter：
Measure the starting voltage to determine whether the starter is functioning normally. It won't start!!! In addition to the dead battery, the starter may also be the main cause. The engine cannot be pushed, and naturally it cannot cycle the ignition. I don’t want to worry about the roadside!!! The starter should also be checked carefully.
VAT-586b fit alternator,cranking test
Customized cooperation
Battery tester can cooperate with customization, modify the software, appearance (shell color, plastic sleeve color, inscription plate design...) according to the needs to meet customer requirements, and make customer-specific models to facilitate market segmentation.
VAT-630 with magnet hook
Tester specification sheet
model VAT-586B
Applicable voltage 12V / 24V
Testable battery Lead acid
Applicable generator 12V / 24V
Applicable starter 12V / 24V
Measurable range 100~2200CCA
Applicable norms CCA、JIS、EN 、DIN、IEC 、Unknown (Judging by CCA)
Display content Input standard, status evaluation, voltage, resistance, capacitance, life evaluation
Abnormal judgment Plate damage, low voltage warning, abnormal connection warning
Screen size 64 x 128 LCD
Screen font size  4 lines 64 digits
Body size
